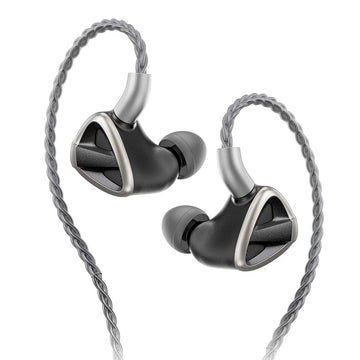

FiiO FH19

The new FiiO FH19 burst into the range of FiiO in-ear headphones with a structure of 8 drivers: 2 dynamic + 6 Balanced-Armature for mids and highs developed by Knowles. It maintains the characteristic sound and handcrafted quality of the FH9, on a high-end acoustic design, with richer and fuller mids and more robust and flexible bass.

In addition, the fit has been redesigned and optimized based on the characteristics of the human ear, allowing you to enjoy total comfort, together with a semi-open design and the possibility of exchanging the connector according to the device you are going to use your IEMs with.

These FH19 arrive ready to conquer your ears. Discover them!

The new FiiO FH19 features a dual dynamic driver setup and six balanced armature drivers worthy of a flagship.

Bass is handled by anew push-pull dual dynamic driverdeveloped jointly with Tokyo Onkyo Ltd. in Japan. This driver features greatly improved low frequency extension, cohesion and speed.

Mid-to-high frequencies are handled by specially customized Knowles Enhanced Midrange Balanced Armature transducers, achieving greater sound energy density for rich, delicate vocals that are wonderfully musical without sacrificing performance. detail.

For the development of the FiiO FH19, a dual push-pull driver is integrated, used in high-end IEMs.

This technology employs two 13.7mm magnetic dynamic drivers with PU+DLC composite diaphragms, arranged in opposite configuration. Compared to typical dynamic drivers, dual push-pull drivers require only half the amplitude to reach the sound pressure level. This results in a smaller diaphragm displacement, to reduce distortion and improve performance.

The FH19 uses six Knowles balanced armature drivers as mid and high frequency sound units. By adding acoustic vents to the driver's rear cavity, the mid frequencies gain greater sound energy, resulting in rich, smooth vocals.

These FH19 have a build quality worthy of a flagship, to which the central titanium frame contributes. It has a luxurious feel, which together with its titanium finish, gives FiiO IEMs a high-end look.

They are made from 7000 series aluminum, which ensures a strong and durable casing, while reducing the weight of the headphones. Thus, the result is a comfortable user experience without giving up a first-class acoustic design.

Since the launch of its FH line of in-ear headphones, thefirm has opted for the semi-open design, adjusted to the millimeter to achieve a wide soundstage. This design efficiently balances internal air pressure, eliminating the feeling of pressure on the eardrum, to help protect hearing. Enjoy your favorite music for long periods of listening.

To achieve excellent flagship-level performance, the FH19 uses a suspended voice coil design. The coil leads are routed directly from the center hole beneath the diaphragm, allowing them to float within the space. This structure guarantees uniform and smooth movement of the diaphragm, to minimize interference from other factors and release its potential to the maximum.

Inspired by the turbochargers found in supercars, the FiiO development team meticulously created the patented S.Turbo acoustic design.

This design ingeniously takes advantage of the guiding properties of sound waves, enhancing bass performance through a turbine-shaped structure, for deep and vibrant bass.

As usual in the FH IEM range, the FiiO FH19integrate three pairs of interchangeable audio filters. Each filter has a different internal damping and mesh density, to adjust the sound to your liking.

Based on user feedback and numerous optimizations, the angle between the earpiece and the wearing surface along the axis is exactly 10º, while the length of the earpiece does not change. This adjustment allows the headphones to fit more precisely to the ear canal, significantly improving comfort and stability.

Additionally, the FH19 features an all-new, more three-dimensional rear cavity design. Numerous tests resulted in many ergonomic optimizations, such as ear-friendly protrusions with a thickness of approximately 1.4 mm that ensure a comfortable and stable fit while minimizing any unwanted movement.

The new design of the rear cavity of the FH19 presents a slight reduction of approximately 1 mm in thickness in the area that corresponds to the fold of the human ear. This structural design reduces the feeling of pressure and compression in the ear caused by headphones. Combined with the excellent case materials, it allows the FiiO FH19 to disappear in your ears while delivering top-of-the-range sound.

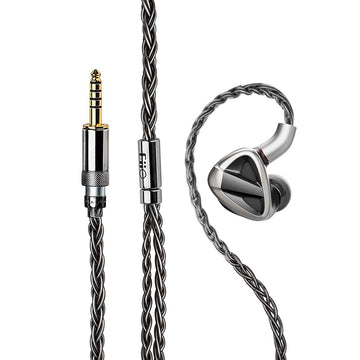

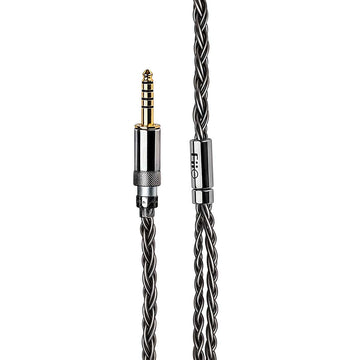

The FiiO FH19 comes standard with a high purity pure silver cable. Each of the 8 wires consists of 28 cables for a total of 224 wires. Each individual wire is insulated with enamel and the wire is stranded with Litz braids.

The outer cover is made of imported transparent environmentally friendly TPU, which enhances its transparent appearance. Additionally, this material prevents the cable from yellowing with prolonged use and becoming rigid in low temperature environments.

It uses expanded steel MMCX connectors, for stable connections and the possibility of swapping between 3.5 and 4.4mm connectors.

The FiiO FH19 includes 22 pairs of silicone ear tips, in different shapes and sizes to give you a comfortable listening experience.

• HS20: made of injection-molded silicone using a high-temperature melting process, they have a transparent appearance and remain comfortable and secure in your ears.

• HS18: independently molded; with a thickness of only 0.4mm and an opening as large as the IEM sound nozzle.

• SpinFit: CP series' ability to rotate 360º means less pressure on the ear, greater comfort and better sound.

• 1 x FiiO FH19
• 1 x Quick Start Guide
• 1 x HB7 Case
• 1 x Headphone Cable with Pure Silver Interchangeable Plug
• 1 x Interchangeable 3.5mm / 4.4mm Connectors
• 2 x Foam silicone ear tips (M)
• 3 x Bass Silicone Ear Pads (S, M, L)
• 3 x Ear media silicones (S,M,L)
• 3 x Standard Silicones (S,M,L)
• 1 x Red, Black and Green Audio Filters
• 1 x Magnetic Cable Clip
• 1 x Cleaning Brush
• 1 x Quick Release Tool
