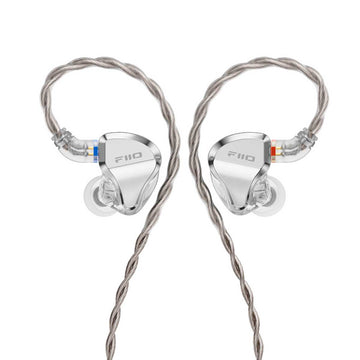

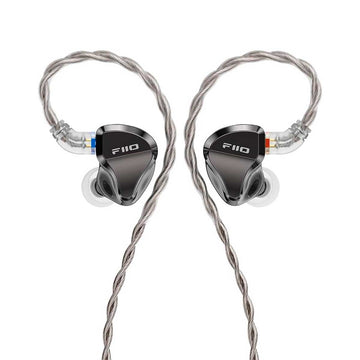

FiiO JH5

The FiiO JH5 are the brand's in-ear headphones with a structure of 1 dynamic driver and 4 BA, following a three-way design. It features with a dynamic carbon driver and four customized Balanced-Armature for a sound response capable of staying between balance and forcefulness.

Its design, based on high-precision 3D printing, gives rise to a capsule that is also light and full of style. , integrates detachable 2 pin 0.78 cable so you can keep the cable for years.

Thus, these JH5 lead the way line of IEMs in the entry range with magnificent audio definition and a design designed for all users.

The quality of the dynamic transducer is especially important in hybrid IEMs, as it is the basis of their sound.

The JH5's 10mm carbon dynamic driver is similar to those used in the popular 'Little' series of headphones. Conch» by FiiO. However, this driver has been fine-tuned even further, making it a second-generation model that has design. The carbon-based driver can move quickly, resulting in excellent transient performance.

To go further, of the typical sound of its class, in the development of the FiiO JH5 it was lent Special attention to the optimization of the dynamic driver.

It has an exclusive double-layer cavity that allows the damping control systems of the inner chambers and The outer diaphragm precisely controls airflow, reducing distortion and allowing the diaphragm to move more freely without slowing down. The result is wide, fast bass.

The FiiO JH5 is Equipped with the second generation asymmetric internal and external magnetic circuit design. Compared with the traditional single internal magnet or single external magnet design, the magnetic circuit of the JH5 greatly increases the density of the magnetic field around the voice coil. , which translates into greater power for a more robust sound, as well as as in an improved transient response.

Also, the JH5 uses powerful N52 neodymium magnets with a magnetic flux of 1.5T. More powerful magnets ensure a more uniform magnetic field over a wider area, resulting in less distortion even when playing very dynamic audio signals, which which results in a liquid sound without any restriction.

To ensure that the dynamic transducer would work well with the balanced armature transducers, the development team from FiiO took Borrowed design ideas from high-end hybrid IEMs like the FH9 and FH7.

Two custom BA transducers handle the mid and high frequencies. These two BA transducers were specially designed together with the dynamic transducer to have a resonance peak at 2.8 kHz, which also happens to be a resonance frequency formed by the shape of the human ear.

The result is not only a smooth transition between the dynamic and balanced armature transducers, but also ensures that the transition between the different transducers also adapts well to the shape of the ear. ;human sound, resulting in a more natural soundstage and overall smoother sound.

To achieve sound quality goals, the development also equipped the JH5 with two custom BA ultra-high frequency transducers. These two UHF transducers were placed closer to the sound nozzle, which became thicker inside, shorter and with a small curvature. The result of this design allows the FiiO JH5 to extend well into the treble, being capable of producing ultra-high frequencies. It will allow you You will feel every pluck of the instrument's strings, bringing you much closer to musical performance.

For better sound and superior comfort, the FiiO JH5 case it is Made with medical grade resin that has gone through high precision DLP 3D printing.

• High precision 3D printing process down to 0.05mm ensures that even the most complex acoustic designs are made consistently across all units.
< /ul>
• Medical grade resin helps make the JH5 tough and impact resistant, ensuring it lasts a long time.

To achieve maximum performance and produce a natural sound at all frequencies, the development team decided to: take advantage of high-precision 3D printing by manufacturing three independent chambers, each of which houses a set of transducers that handle a specific set of frequencies to reduce interference between the different transducers and reduce like this distortion

To achieve maximum performance and produce a natural sound at all frequencies, FiiO decided to reduce distortion. take advantage of the advantages of high-precision 3D printing by manufacturing three independent chambers, each housing a set of transducers that drive a specific set of frequencies to reduce interferences between the different transducers and thus reduce distortion

The FiiO JH5 comes standard with acable made of high-purity silver-plated copper wires.

Each 14 wires are twisted into a small holder and 7 small wires form one big wire. With a total of 4 large wires, the JH5 cable has a total of 392 wires. Each of the cables is independently insulated and Litz stranded, which increases the conductive area and improves high frequency details.

In addition, the cable 0.78 and 2 pinsallowing ample opportunities for future upgrades. The 0.78 2-pin connectors are elbow-shaped and the cable ergonomically wraps around the ear for a more comfortable listening experience.
