iFi Audio ZEN DAC 3

DAC/Amplifier
€229,00 €229,00 per
Third generation of the iFi Zen DAC capable of decoding higher resolution formats
Details

0Fresh new look. Release every musical detail.

0

The ZEN DAC 3 serves as a gateway to the world of high-resolution music and offers support for sample rates up to 768 kHz. This future-proof feature ensures full compatibility with all music formats available on streaming platforms, giving you the best sound quality.

Equipped with a built-in headphone amplifier and the versatility to function as a DAC and DAC/Pre, this all-in-one device is the only piece of equipment you'll ever need on your desk. Seamlessly connects to headphones, preamplifiers, integrated amplifiers or active speakers, offering a comprehensive audio solution for home and office.

1Refined to perfection.

1

The acclaimed ZEN DAC series has won numerous awards, including being named WHAT Hi-Fi? as the best DAC under £200 for four years running.

The ZEN DAC 3 continues its legendary status by doubling down on its high-resolution support up to 768 kHz, DSD512, and MQA decoding capabilities.

USB-C connectivity streamlines cable management and provides USB input surge protection, protecting them from potential damage. Additionally, a significant reduction in DC offset minimizes audio clicks when adjusting settings. These improvements propel the ZEN DAC 3 to new heights of audio excellence.

2Power your headphones.

2

The ZEN DAC 3 goes beyond just being a USB DAC as it features a built-in headphone amplifier equipped with 4.4mm balanced and 6.3mm SE headphone outputs.

With its high-performance 390mW headphone output power, you can use it with a wide range of headphones.

XBass+ is a switchable pure analog signal processing mode designed to enhance bass without compromising midrange clarity. It's perfect for use with IEMs or open-back headphones, which may lack bass response.

The amplifier stage includes a switchable gain function called PowerMatch, which provides a gain boost for more demanding headphones. If you have headphones that demand even more power, you can connect the ZEN DAC 3 to the ZEN CAN headphone amplifier using a 4.4mm jack to 4.4mm balanced cable, stacking them as a ZEN system.

3DACtivate your speakers and amplifier.

3

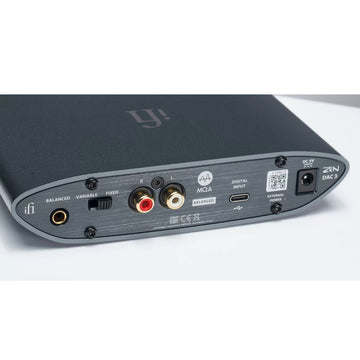

The ZEN DAC 3 features a variable or fixed output switch.

In Variable mode, adjust the volume using the knob when connecting directly to active speakers via our 4.4mm to XLR cable or RCA cables.

Use fixed mode to connect line outputs to a receiver or head amplifier.

The ZEN DAC 3 is the most versatile USB DAC in its class and offers multiple usage options.

4Powered by USB-C, upgradeable performance.

4

The ZEN DAC 3, powered by USB-C, simplifies cable management. However, for audiophiles looking to upgrade their system, the 5V power input offers an upgrade option.

When an external power source is connected, the USB-C port will only transmit data, ensuring a purer signal.

The iFi iPower2 is an ultra-quiet, ultra-clean audiophile-grade power supply, featuring Active Noise Cancellation II technology to cancel all incoming EMI and RFI noise, you'll never feel powerless over noise and graininess again.

It is more than 10 times quieter than most audiophile power supplies.

Do you have questions about this or other products in our catalogue? Contact us
Specifications

Specifications

0
  • Input: USB type C
  • Formats
    • PCM (768/705.6/384/352.8/192/176.4/96/88.2/48/44.1kHz)
    • DSD (512/256/128/64)
    • DXD (768/705.6/384/352.8 kHz)
    • MQA (Decoder)
  • DAC: Burr Brown's Bit-Perfect DSD and DXD DAC
  • Line output section
    • Output power:
      • Balanced 4.4mm: 2V/6.2V max. (variable); 4.2 V fixed
      • Single-ended RCA: 1V/3.3V max. (variable); 2.1 V fixed
    • Balanced output impedance 4.4 mm ≤200 Ω; Single-ended RCA ≤100Ω
    • SNR ≥ 113 dBA at 0 dBFS
    • DNR ≥ 113 dBA at 0 dBFS
    • THD+N: balanced 4.4 mm <0.0015% at 0 dBFS; Single-ended RCA <0.003% at 0 dBFS
  • Headphone output section
    • Max^ Output Power
      • Balanced 4.4 mm >70 mW at 600 Ω; >300mW @ 32Ω
      • Single-ended 6.35 mm >18 mW at 600 Ω; >210mW @ 32Ω
    • RMS output power
      • Balanced 4.4 mm >390 mW at 64 Ω
      • Single-ended 6.35 mm >210 mW at 32 Ω
    • Output impedance ≤1Ω
    • SNR ≥ 109 dBA at 0 dBFS (6.2 V 4.4 mm/3.3 V 6.35 mm)
    • DNR ≥ 109 dBA at 0 dBFS (6.2 V 4.4 mm/3.3 V 6.35 mm)
    • THD+N balanced 4.4 mm <0.005% (2 V at 600 Ω); Single-ended 6.35 mm <0.013% (1.27 V at 32 Ω)
  • General
    • Frequency response 5 Hz – 90 kHz (±3 dB)
    • USB-C or DC 5V/0.5A power supply requirement (center +ve)
    • Power consumption No signal ~0.5W; Maximum signal ~2.5 W
    • Dimensions 158 x 115 x 35 mm (6.2” x 4.6” x 1.4”)
    • Net weight 456 g (1.0 lb)
