Klipsch RP-504C

Center channel speaker
€399,00 €799,00 €399,00 per
Center channel speaker.

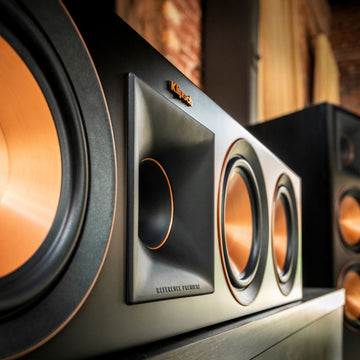

Klipsch RP-504C, center channel speaker

The Klipsch RP-504C Reference Channel Center Speaker makes movie dialogue and song lyrics come to life. Four 5.25' Cerametallic woofers and a Tractrix hybrid speaker deliver realistic sound.


  • 1' Titanium LTS Vented Tweeter with Tractrix Hybrid Horn
  • Quadruple 5.25' Spun Copper Cerametallic woofer
  • Tractrix rear-firing reflex port
  • Premium Premium Scratch Ebony and Walnut finishes
  • Strong and flexible removable magnetic grille

Hybrid Tractrix Horn Technology

Klipsch's patented Horn Tractrix technology ensures that the high-frequency energy of the RP-504C center channel speaker is directed directly at the listener and reduces unwanted artificial reverberation caused by indirect sound bouncing off walls, meaning that experience the clearest and most detailed.

Magnificent anatomy

Klipsch Reference Premiere speakers feature a compressed molded silicone face that mates with the 90x90 Tractrix horn to reduce horn resonance for a smoother frequency response.

Klipsch's computer-modeled phase plugs act as a mechanical filter to ensure a flat, smooth frequency response while protecting the tweeter from damage.

Vented tweeter

A vented tweeter design reduces standing waves behind the tweeter diaphragm for smoother high-frequency reproduction.

The lightweight, rigid composition of the titanium tweeter diaphragm outperforms aluminum, polymer or silk tweeters.

Klipsch's award-winning Linear Travel Suspension technology harnesses the piston movement of the titanium diaphragm to reduce distortion and deliver true-to-life sound.

A ceramic magnet housing provides superior performance, Klipsch Reference Premiere tweeters set the standard in acoustic reproduction.

Cerametallic Fabrics

Klipsch Proprietary's Cerametallic woofers are the RP-504C center channel speaker's signature statement for both sound and aesthetics.

These extremely light and rigid materials maintain their shape while being able to deliver lower frequencies with maximum efficiency.

New Woofer

Klipsch Cerametallic cones are entangled in a copper-wound dual-layer voice coil for exceptional conductivity.

The Premiere Reference woofers are housed in a non-resonant stamped steel basket that is clamped to a large magnet motor for exceptional efficiency and low distortion, and is paired with our loaded tweeters for optimal acoustic performance.

Rear TRACTRIX port

The Tractrix rear port of the Premiere Reference center channel speakers fits perfectly into the cabinet and woofers, creating ideal airflow with minimal distortion or turbulence even in the lowest frequencies.

Finished to perfection

The RP-504C Ebony and Walnut finishes feature satin-painted screens with a scratch-resistant design for a stylish audio solution for your home theater system.

Strong and flexible magnetic grilles provide protection and a stylish aesthetic to complement your home decor.

Do you have questions about this or other products in our catalogue? Contact us


  • Frequency response: 58 Hz – 25 kHz +/- 3dB
  • Sensitivity: 97 dB at 2.83 V/1M
  • Current handling (continuous/peak): 150W / 600W
  • Nominal impedance: 8 Ohms compatible
  • Cutting frequency: 500 / 1,500 Hz
  • Treble driver: 1'' LTS titanium vented tweeter with Tractix Hybrid Cross-Section Horn
  • Bass driver: four 5.25'' Woofer with cerametallic cone
  • Box material: MDF
  • Case type: bass-reflex with Tractrix rear port
  • Type of inputs: simple connection terminals
  • Dimensions (height x width x depth): 17.3 cm x 79.1 cm x 36.7 cm
  • Weight: 15.4 kg
  • Finishes: ebony and walnut
  • Accessories: 4 rubber feet
