iFi Audio Zen One Signature

Dac with Bluetooth reception. It has LDAC codec and MQA decoding.
€349,00 €349,00 per
DAC with Bluetooth reception
Details

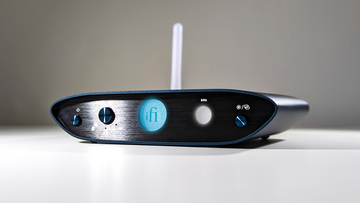

iFi Audio Zen One Signature

The ZEN One Signature delivers exceptional sound from all digital devices in a home audio environment.

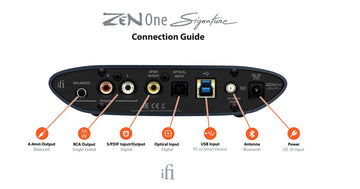

A DAC for universal connectivity:

  • Bluetooth
  • USB
  • S/PDIF

Purist engineering and high-end circuitry

The ZEN One Signature is optimized to deliver captivating sound with all forms of media, from high-resolution music to movie and video game soundtracks.

  • State-of-the-art Bluetooth: the best sound from all sources
  • High-resolution True Native DAC with a powerful 16-core XMOS processor
  • Balanced circuit design with Signature grade circuit components

High resolution DAC

  • Up to 32-bit/384 kHz high-resolution PCM
  • Full native DSD playback
  • Full MQA decoding
  • S/PDIF optical and coaxial PCM and 32 bit/192 kHz MQA compatible

High resolution Bluetooth

  • Advanced 96kHz Bluetooth 5.1 module with QCC5100 chipset
  • Supports Bluetooth HD formats including aptX, aptXHD, aptXAdaptive, aptXLL, LDAC and LHDC/HWA, AAC and SBC codecs
  • Bluetooth at 96kHz
  • High gain antenna for extended Bluetooth range

Improved GMT circuit

  • Enhanced Global Master Timing (GMT) clock circuitry
  • Customized digital filter
  • Eradicates jitter and other forms of digital distortion
  • >20dB better performance

Balanced audiophile-grade circuit design

  • Balanced analog circuit design
  • Outstanding components, including TDL's C0G capacitors
  • Ultra-low distortion and exceptional sound purity
  • SNR:-105dB(A) @ 0dBFS(BAL/UnBAL)
  • THD + N:<0.002% @ 0dBFS(BAL/UnBAL)
Do you have questions about this or other products in our catalogue? Contact us
Specifications

General specifications

  • Power: DC 5V (centre pin +ve)
  • Digital inputs
    • USB3.0 Type B (USB2.0 compatible)
    • S/PDIF (coaxial, TOSLINK optical)
    • Bluetooth 5.1 (aptX, aptXHD, aptXAdaptive, aptXLL, LDAC, LHDC/HWA, AAC and SBC codec)
  • Formats
    • PCM: 44.1/48/88.2/96/176.4/192kHz
    • DSD: 2.8/3.1/5.6/6.1/11.3/12.3MHz
    • DXD: 352.8/384kHz
    • MQA: Decoder
    • Bluetooth: 96kHz
  • Chipset
    • Bit-Perfect DSD & DXD DAC by Burr Brown
    • Qualcomm QCC 5100 Series
  • Analogue outputs
    • Coaxial, Audio RCA L/R
    • 4.4 Balanced Lineout
  • Frequency Response: 5Hz -80kHz ±3dB
  • Outputs: 4V / 2V max. (BAL/UnBAL)
  • Output Impedance: ≤72Ω/36Ω (BAL/UnBAL)
  • SNR: -105dB(A) @ 0dBFS (BAL/UnBAL)
  • THD + N: <0.002% @ 0dBFS (BAL/UnBAL)
  • Power consumption: No Signal ~0.7W/Max Signal ~1W
  • Dimensions: 158 x 100 x 35 mm
  • Net weight: 485g

Line output specifications

  • Outputs
    • Balanced: 6.7V max. (variable)
    • UnBAL: 3.5V max. (variable)
  • Output Impedance
    • Balanced: ≤200Ω
    • UnBAL: ≤100Ω
  • SNR
    • Balanced: <110dB(A) @ 0dBFS
    • UnBAL: <110dB(A) @ 0dBFS
  • THD+N
    • Balanced: <0.007% @ 0dBFS
    • UnBAL: <0.015% @ 0dBFS
Do you have questions about this or other products in our catalogue? Contact us
