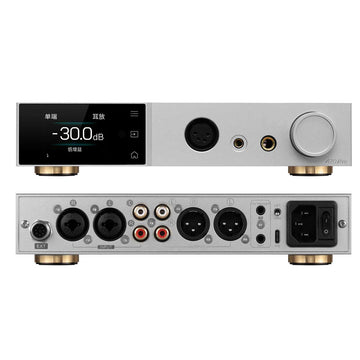

Topping A70 PRO

Name: Topping A70 PRO
Brand: Topping
SKU: A70PRO-B
Price: 499.99 EUR
Availability: InStock

Desktop headphone amplifier

€499,99 €499,99

Alex

960 457 885

Headphone amplifier and preamplifier.

Details

Topping A70 Pro, musical renaissance

The Topping A70 Pro introduces, for the first time, the T'ang-ku-la module, developed by the brand and utilizes a new three-stage feedback circuit. Further reducing noise and high-frequency distortion, the dynamic range rises to a new unparalleled realm of 147dB.

The new technology greatly reduces heat generation, which greatly improves reliability, extends the life of electronic components and reduces thermal noise.

New re-optimized circuit

The newly developed ultra-low noise input stage further improved the noise performance of the balanced input and increased the input impedance to 20 kOhms, allowing it to have better compatibility with incoming devices.

The gain architecture has also been redesigned to further reduce noise and distortion in high gain states than the previous architecture.

Uncompromising power

With 17000mW of output power at 16 Ohms, the A70 PRO is able to maintain its low distortion levels.

32 Ohms headphones: 1000mW x 2
300 Ohms headphones: 1200mW x 2

Disappearance of noise

When multiple devices are used in combination, ground loop noise may be encountered. A70 Pro adds a GND/LIFT switch, when ground loop noise is encountered, switch to LIFT and the noise will disappear.

New interface

The interface of the Topping A70 PRO has been revamped to include a display with capacitive buttons and color indicators to clearly visualize everything that is going on in your amplifier: volume management, measurements, gain, etc.

Through its robust in construction and soft in touch volume wheel, you can execute all possible functions.

Independent volume control

The A70 Pro uses networks of relays and resistors to form the R2R volume control module, which provides precise volume control, long life and does not drift even at low volume.

At the same time, the device can memorize 8 separate and automatic volume settings and return to the last used volume the next time the output is selected.

Expandable inputs

The A70 Pro has one set of balanced XLR inputs and one set of single-ended RCA inputs. But with the Ext90 input expansion, you get a total of our balanced XLR and two single-ended RCA inputs.

Low noise level

The Topping A70 PRO offers excellent performance at both high and low gain. With an output voltage of 50 mW, the A70 Pro achieves a much higher dynamic range of 106.3 dB.

Also preamplifier

The Topping A70 Pro handles headphones well and can also be used as a preamplifier. It has the same high performance as the headphone amp mode, with an RCA output impedance of only 50 ohms and an XLR output impedance of only 100 ohms, allowing it to be used with a wide range of input impedances for various power amplifiers.

12V Trigger

The A70 Pro has a 12V trigger input and output interface, which supports other devices to turn on and off, as well as triggering other devices to turn on and off synchronously.

The best tandem

The Topping A70 Pro and D70 Pro SABRE have identical design languages and can meet the needs of the vast majority of active headphones and loudspeakers. The A70 Pro and D70 Pro SABRE can be switched on and off together via the 12V Trigger connector, allowing the A70 Pro to be synchronized with the D70 Pro SABRE for automatic or manual switching.

Do you have questions about this or other products in our catalogue? Contact us

Specifications

General specifications

Product type: Headphone amplifier/pre-amplifier
Inputs: 1x stereo RCA, 1x balanced stereo XLR
Outputs:
- 1x stereo RCA
- 1x balanced stereo XLR
- 1x 4-pin XRL
- 1x 4.4 mm balanced headphone jack output
- 1x 6.35 mm balanced jack headphone output
Material: Aluminum
Dimensions: 222 x 176 x 48mm
Color: Black
Accessories:
- 1x Topping A70 Pro
- 1x Power cable
- 1x IR remote control
- 1x 6.35mm to 3.5mm jack adapter
- 1x Manual
- 1x Warranty card

SE IN/SE OUT amplifier specifications

THD+N @1Khz (ponderado A):
<0,000065 % @ salida = 500 mW 32 ohmios
<0,000055 % @ salida = 80 mW 300 ohmios
THD @ 20-20Khz (90kBW):
<0,00006 % @ salida = 500 mW 32 ohmios
<0,00005 % @ salida = 80 mW 300 ohmios
SNR @ SALIDA MÁXIMA 1Khz (ponderado A): 143dB
Gama dinámica: 143dB
Respuesta frecuente: 20Hz - 40Khz (+/-0.05dB)
Nivel de salida: 28Vpp @G=L / 27.6Vpp @G=H
Medición del nivel de ruido AP (ponderado A): <0.7uVrms @G=L, <1.0uVrms @G=H
Nivel de ruido efectivo (ponderado A): <0.2uVrms @G=L, <0.8uVrms @G=H
Separación de canales @ 1kHz: -123dB
Sensibilidad de salida: 10,3 Vrms @G=L, 2,0 Vrms @G=H
Ganancia: 0dB @G=L, 13.8dB @G=H
Impedancia de salida: < 0,1 ohmios
Potencia de salida:
- 6000mW x 2 a 16 ohmios THD+N<0,1%
- 3000mW x 2 a 32 ohmios THD+N<0,1%
- 1550mW x 2 a 64 ohmios THD+ N<0,1%
- 330mW x 2 a 300 ohmios THD+N<0,1%
- 165mW x 2 @600 ohmios THD+N<0,1 %
Impedancia de carga: < 8 ohmios

BAL IN/SE OUT amplifier specifications

THD+N @1Khz (ponderado A):
<0,000065 % @ salida = 500 mW 32 ohmios
<0,000055 % @ salida = 80 mW 300 ohmios
THD @ 20-20Khz (90kBW):
<0,00006 % @ salida = 500 mW 32 ohmios
<0,00005 % @ salida = 80 mW 300 ohmios
SNR @ SALIDA MÁXIMA 1Khz (ponderado A): 140dB
Gama dinámica: 140dB
Respuesta frecuente: 20Hz - 40Khz (+/-0.05dB)
Nivel de salida: 56Vpp @G=L / 54Vpp @G=H
Medición del nivel de ruido AP (ponderado A): <0.9uVrms @G=L, <1.9uVrms @G=H
Nivel de ruido efectivo (ponderado A): <0.6uVrms @G=L, <1.8uVrms @G=H
Separación de canales @ 1kHz: -122dB
Sensibilidad de salida: 10,3 Vrms @G=L, 2,0 Vrms @G=H
Ganancia: 6dB @G=L, 19.8dB @G=H
Impedancia de salida: < 0,2 ohmios
Potencia de salida:
- 6000mW x 2 a 16 ohmios THD+N<0,1%
- 3000mW x 2 a 32 ohmios THD+N<0,1%
- 1550mW x 2 a 64 ohmios THD+ N<0,1%
- 330mW x 2 a 300 ohmios THD+N<0,1%
- 165mW x 2 @600 ohmios THD+N<0,1 %
Impedancia de carga: < 8 ohmios

SE IN/BAL OUT amplifier specifications

THD+N @1Khz (ponderado A):
<0,000065 % @ salida = 500 mW 32 ohmios
<0,000055 % @ salida = 80 mW 300 ohmios
THD @ 20-20Khz (90kBW):
<0,00006 % @ salida = 500 mW 32 ohmios
<0,00005 % @ salida = 80 mW 300 ohmios
SNR @ SALIDA MÁXIMA 1Khz (ponderado A): 147dB
Gama dinámica: 147dB
Respuesta frecuente: 20Hz - 40Khz (+/-0.05dB)
Nivel de salida: 56Vpp @G=L / 54Vpp @G=H
Medición del nivel de ruido AP (ponderado A): <0.9uVrms @G=L, <1.9uVrms @G=H
Nivel de ruido efectivo (ponderado A): <0.6uVrms @G=L, <1.8uVrms @G=H
Separación de canales @ 1kHz: -122dB
Sensibilidad de salida: 10,3 Vrms @G=L, 2,0 Vrms @G=H
Ganancia: 6dB @G=L, 19.8dB @G=H
Impedancia de salida: < 0,2 ohmios
Potencia de salida:
- 17000mW x 2 a 16 ohmios THD+N<0,1%
- 12600mW x 2 a 32 ohmios THD+N<0,1%
- 6000mW x 2 a 64 ohmios THD+ N<0,1%
- 1370mW x 2 a 300 ohmios THD+N<0,1%
- 670mW x 2 @600 ohmios THD+N<0,1 %
Impedancia de carga: < 8 ohmios

BAL IN/BAL OUT amplifier specifications

THD+N @1Khz (ponderado A):
<0,000065 % @ salida = 500 mW 32 ohmios
<0,000055 % @ salida = 80 mW 300 ohmios
THD @ 20-20Khz (90kBW):
<0,00006 % @ salida = 500 mW 32 ohmios
<0,00005 % @ salida = 80 mW 300 ohmios
SNR @ SALIDA MÁXIMA 1Khz (ponderado A): 142dB
Gama dinámica: 142dB
Respuesta frecuente: 20Hz - 40Khz (+/-0.05dB)
Nivel de salida: 54Vpp @G=L / 54Vpp @G=H
Medición del nivel de ruido AP (ponderado A): <0.9uVrms @G=L, <1.9uVrms @G=H
Nivel de ruido efectivo (ponderado A): <0.6uVrms @G=L, <1.8uVrms @G=H
Separación de canales @ 1kHz: -133dB
Sensibilidad de salida: 9,8 Vrms @G=L, 2,0 Vrms @G=H
Ganancia: 6dB @G=L, 19.9dB @G=H
Impedancia de salida: < 0,2 ohmios
Potencia de salida:
- 17000mW x 2 a 16 ohmios THD+N<0,1%
- 12600mW x 2 a 32 ohmios THD+N<0,1%
- 6000mW x 2 a 64 ohmios THD+ N<0,1%
- 1370mW x 2 a 300 ohmios THD+N<0,1%
- 670mW x 2 @600 ohmios THD+N<0,1 %
Impedancia de carga: < 8 ohmios

SE IN/SE OUT preamplifier specifications

THD+N @1Khz (A-weighted): <0.000055%
THD @ 20-20Khz (90kBW): <0.00005%
SNR @ MAXIMUM OUTPUT 1Khz (A-weighted): 143dB
Dynamic range: 143dB
Frequency response: 20Hz - 40Khz (+/-0.05dB)
Output level: 28Vpp @G=L, 56Vpp @G=L
Measured AP (A-weighted) noise floor): <0.7uVrms @G=L, <1.0uVrms @G=H
Effective noise floor (A-weighted): <0.2uVrms @G=L, <0.8uVrms @G=H
Channel separation @ 1kHz: -119dB
Output sensitivity: 10.3 Vrms @G=L, 2.0 Vrms @G=H
Gain: 13.8dB @G=H, 0dB @G=L
Output impedance: 50 ohms

BAL IN/SE OUT preamplifier specifications

THD+N @1Khz (A-weighted): <0.000055%
THD @ 20-20Khz (90kBW): <0.00005%
SNR @ MAXIMUM OUTPUT 1Khz (A-weighted): 140dB
Dynamic range: 140dB
Frequency response: 20Hz - 40Khz (+/-0.05dB)
Output Level: 27.2Vpp @G=L, 27.6Vpp @G=L
Measured AP noise level (A-weighted): <0.7uVrms @G=L, <1.0uVrms @G=H
Effective noise floor (A-weighted): <0.2uVrms @G=L, <0.8uVrms @G=H
Channel separation @ 1kHz: -123dB
Output sensitivity: 9.8 Vrms @G=L, 2.0 Vrms @G=H
Gain: 13.8dB @G=H, 0dB @G=L
Output Impedance: 50 ohms

SE IN/BAL OUT preamplifier specifications

THD+N @1Khz (A-weighted): <0.000055%
THD @ 20-20Khz (90kBW): <0.00005%
SNR @ MAXIMUM OUTPUT 1Khz (A-weighted): 147dB
Dynamic range: 147dB
Frequency response: 20Hz - 40Khz (+/-0.05dB)
Output level: 56Vpp @G=L, 54Vpp @G=L
Measured AP noise level (A-weighted): <0.9uVrms @G=L, <1.9uVrms @G=H
Effective noise floor (A-weighted): <0.6uVrms @G=L, <1.8uVrms @G=H
Channel separation @ 1kHz: -118dB
Output sensitivity: 10.3 Vrms @G=L, 2.0 Vrms @G=H
Gain: 6dB @G=H, 19.8dB @G=L
Output impedance: 100 ohms

BAL IN/BAL OUT preamplifier specifications

THD+N @1Khz (A-weighted): <0.000055%
THD @ 20-20Khz (90kBW): <0.00005%
SNR @ MAXIMUM OUTPUT 1Khz (A-weighted): 142dB
Dynamic range: 142dB
Frequency response: 20Hz - 40Khz (+/-0.05dB)
Output level: 54Vpp @G=L, 54Vpp @G=L
Measured AP noise level (A-weighted): <0.9uVrms @G=L, <1.9uVrms @G=H
Effective noise floor (A-weighted): : <0.6uVrms @G=L, <1.8uVrms @G=H
Channel separation @ 1kHz: -118dB
Output sensitivity: 10.3 Vrms @G=L, 2.0 Vrms @G=H
Gain: 6dB @G=H, 19.9dB @G=L
Output impedance: 100 ohms
